Lieu d'origine: | La Chine |
Nom de marque: | Suntech |
Certification: | ISO |
Numéro de modèle: | GR1000 |
Quantité de commande min: | 150PCS |
---|---|
Prix: | Get the lastest price |
Détails d'emballage: | cartons ou palettes |
Délai de livraison: | 25-30days après paiement |
Conditions de paiement: | L/C, T/T, Western Union |
Capacité d'approvisionnement: | 400pcs par mois |
Source d'énergie: | Main | Modèle: | GR1000 |
---|---|---|---|
Capacité: | 1000kg 2200lbs | Nom de produit: | treuil de main d'engrenage à vis sans fin 2200lbs |
Poids: | 38kg | Rapport de transmission: | 23.75:1 |
Surligner: | worm gear hand winch,worm hand winch |

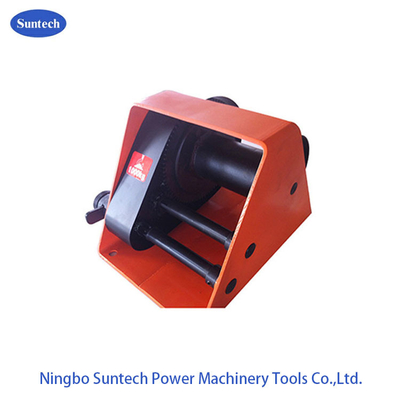

High Precision GR1000 Red Hand Worm Winch , 2200 Lb Worm Gear Hand Winch
The Advantage of our Worm Hand Winch
1, Gear heat treatment
2, Gears are alloy steel and electroplated to resit corrosion
3, Mechanical components enclosed for protection and safety.
4, Strong removable handles
5, High precision construction minimises gear noise
Product Details
1. select high-quality thick hook
Hook made of high grade alloy wear resistant material used for longer, not broken.
2. High quality solid woven wire rope
Select high-quality bold solid wire rope, have bearing material, fine quality, not the advantages of the fracture.
3. One-piece casting process
One-piece casting technology on the fuselage, sturdy and durable, material thick, plastic spraying neat and bright.
4. Gear made of special alloy steel
Gear made of special alloy steel, after high temperature quenching, greatly improving the use of strength and toughness
Specifications in details:
MODEL | GR1000 |
Capacity(kg) | 1000 |
Steel Wire Rope(mm) | 9 |
Length(m) | 25 |
Layer Number | 4 |
Net Weight(kg) | 38 |
A(mm) | 412 |
B(mm) | 485 |
C(mm) | 300 |
D(mm) | 300 |
E(mm) | 350 |
Φx(m) | 9x25 |
Transmission Ratio | 23.75:1 |
Personne à contacter: Peter
Téléphone: 86-13958364836
